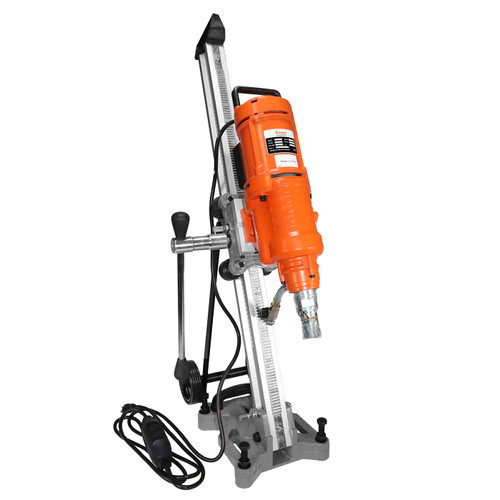

The Cayken SCY-5050 is designed for wet or dry core drilling and comes with the Cayken 580F adjustable aluminum stand with vacuum plate. This drill will cut up to 20-inch holes in reinforced concrete, brick, stone, rock, ceramic, and fireproof materials. This drill has a 7.2 HP motor with three (3) gear speeds. Spline is 1-1/4 in. x 7 TPI. Drill features safety clutch and overload protection. Package includes wrench set, two (2) motor brushes, and 1/4-inch water valve with shut off.
Drill Specifications:
- Motor: 5,380 W, 7.2 HP, 110 V, 50-60 Hz
- Three (3) Gear Speeds: 280 RPM, 420 RPM, and 540 RPM
- Spline: 1-1/4 in. x 7 TPI
Drill Features:
- Designed for wet or dry core drilling.
- Will cut up to 20-inch diameter holes.
- For use on concrete, brick, stone, rock, ceramic, and fireproof materials.
- 1/4-inch water valve for wet drilling.
- Soft start electronic current limiter
- Includes wrench set.
- CE/ROHS/ISO90001 Certified.
- Drill bit not included.
Cayken 580 Stand Specifications:
- Adjustable aluminum stand for drilling at 0 to 60 degrees.
- Base mounts with vacuum plate.
- Built-in leveling bubble.
- Four (4) adjustable slide bearings.
- Larger mast designed to accommodate large-diameter bits and withstand high torque.
- Angle/vertical position locks.
- Four (4) leveling bolts on base.
- Reversible slide handle for dual-side operation.
- Top and rear handles.
- Includes wrench set.
