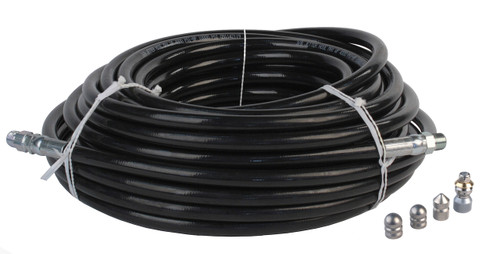

Kit Includes:
- Schieffer 3/8" x 100' Sewer Jetter Hose
- Deluxe Sewer 3/8" NPT Jetter Nozzle 4 Piece Set 8.0 GPM 3000 PSI 9.0 Orifice Thruster, Flusher, Degreaser & Roto Spinner
Sewer Jetter Hose 4000 PSI 3/8" NPT x 100' Black Thermoplastic Weather Oil & Abrasion Resistant
Thermoplastic sewer jetter hose made in the USA for all types of medium and high pressure jetting applications. Schieffer Sewer Jetter hose uses a reinforcement construction composed of one extra strong layer of textile braid. Schieffer uses a single pass with a twenty four carrier braider vs two passes with a sixteen carrier braider like most of the competition. Covering the hose in a single pass keeps the layers of braiding closer and tighter together creating a stronger hose than other competitor's hoses using a two pass process, that is not as tightly wound.
Hose Construction
- Inner Tube: Thermoplastic polyester tube
- Reinforcement: One layer 3/8" high tenacity polyester textile braid that is chemically bonded
- Cover: Black thermoplastic polyurethane that is oil, weather, ozone, and abrasion resistant
- Temperature Range: -40°F / +160°F
Hose Specifications:
- Hose Length: 100'
- Hose Connection: 3/8" MPT (swivel) x 3/8" MPT (solid)
- Hose Size: DN 06 - Dash -04
- Hose I.D: .28" (7mm)
- Hose O.D: .53" (13.7mm)
- Working Pressure: 4000 PSI - 303 Bar
- Proof Pressure: 5500 PSI - 380 Bar
- Burst Pressure: 11000 PSI - 760 Bar
- Bend Radius (MIN): 3.94" (100mm)
Schieffer Quality Guarantee:
Schieffer is an ISO 9001:2008 certified in 2012, The company continues to implement and embrace the most modern practices of quality and continuous process improvement. Each batch is quality tested to meet or exceed expectations because of the following:
- Qualify all fittings
- Burst test hoses
- Leak test assemblies to confirm proper crimp
- Pin test each crimp to confirm proper internal crimp
- Full-Time Quality Control Dept that contributes to our overall performance
Deluxe Sewer 3/8" NPT Jetter Nozzle 4 Piece Set 8.0 GPM 3000 PSI 9.0 Orifice Thruster, Flusher, Degreaser & Roto Spinner
Deluxe Nozzle Kit offers significant savings and utility for those who want to be prepared with multiple nozzle options. This collection of spray patterns will meet the requirements for almost any drain cleaning challenge. Kit inclues the Thruster Nozzle for maximum pulling power to bore through obstructions, the Flusher Nozzle, for general purpose cleaning, the Degreaser/De-Icer which loosens hard grease or ice, and the Standard Rotor Jet Pattern which is a revolving nozzle, creating a continuous "wall of water" to maximize side wall cleaning.
- Deluxe Nozzle Kit
- Collection of spray patterns will meet the requirements for almost any drain cleaning challenge
- Thread Size: 3/8" NPT-F
- GPM: 8.0
- Working PSI: 3000
- Max PSI: 10000
- Orifice Size: 9.0
- Max Temp: 310° F
- Material: Stainless Steel
- Thruster & Flusher Nozzle: .65" (Diameter) x .85" (Length)
- De-Ice/Degreaser Flusher: .65" (Diameter) x 1" (Length)
- Standard Dual Angle Roto Spinner Nozzle: .75" (Diameter) x 1.6" (Length)
Deluxe Nozzle Kit Includes:
- Thruster Nozzle - (3) rear jets at 25° thrust angle for maximum pulling power with (1) 0° forward jet to bore through obstructions
- Flusher Nozzle - (6) 45° rear flushing angle with good pulling power. Good general purpose cleaning nozzle
- De-Ice/Degreaser Flusher- (6) rear jets at 45° thrusting angle for maximum distance & (3) forward jets at 10° for loosening hard ice or grease, can also be used for pushing debris forward
- Standard Dual Angle Roto Spinner Nozzle - (2) side rotor jets at 90° & (2) rear jets at 45°. Creates good pulling power with side jets adding maximized side wall cleaning. Ideal for applications that require a through rinsing action, but not necessarily a heavy blasting action.
- Handy & durable storage box along with stainless steel tip cleaner
