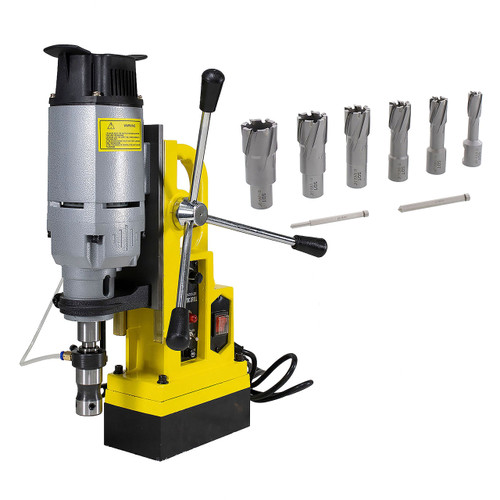

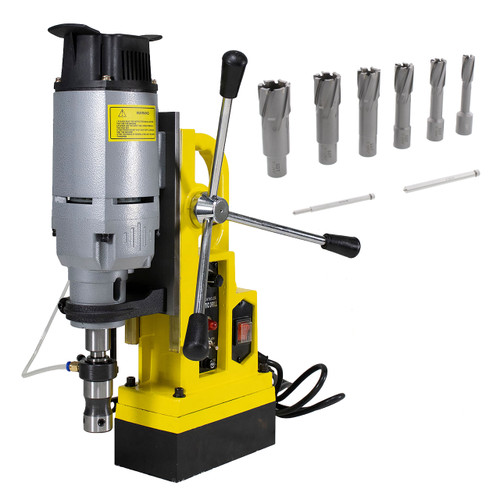

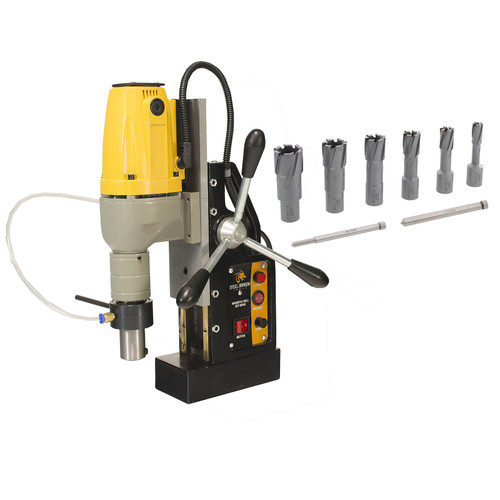

This package includes the Steel Dragon Tools® MD40 Magnetic Drill Press and the Steel Dragon Tools® 7-piece, 1-3/8-inch cut depth carbide-tipped annular cutter kit.
The MD40 Magnetic Drill Press will accept up to 2-inch annular cutters. This magnetic drill press will attach directly to the metal drilling surface with a powerful electromagnet and ensures the machine will not move during the drilling process. The magnet also allows the drill to operate upside down.
MD40 Features:
- Suitable for drilling on any metal surface
- Rack and pinion gear system for exact drilling depth
MD40 Specifications:
- Motor: High-Speed Series, Induction, 1,100 W, 110 V, 60 Hz, 15 A
- Max Magnetic Force: 2,700 lbs. (12,000 N). Thinner metal will result in less force
- Maximum Boring Diameter: 1-1/2 in. (40 mm)
- Maximum Boring Depth: 7-1/2 in.
- Tool Holder: 3/4-inch Weldon Shank
- Spindle Speed: 670 RPM
Annular Cutter Features:
- Steel Dragon Tools® annular cutters drill holes up to ten times faster
- Machine-finish hole with no reaming needed when using lubricant
- Make overlapping holes, slotting holes, and edge cuts
- Bit size is etched on each cutter
- Pilot pin helps locate center of hole location and ejects slug after drilling is complete
- During the drilling process, the pilot pin will retract into the cutter allowing lubrication to reduce heat gain in the slug
Annular Cutter Specifications:
- Kit includes six (6) carbide-tipped annular cutters and one (1) pilot pin
- Bit sizes included: ½ in., 5/8 in., ¾ in., 7/8 in., 1 in., 1-1/8 in.
- Cutting Depth: 1-3/8 in.
- 3/4 in. Weldon Shank
- Pilot Pin: 1/4 in. x 3 in. (6.34 mm x 76 mm)
- Includes carrying case
