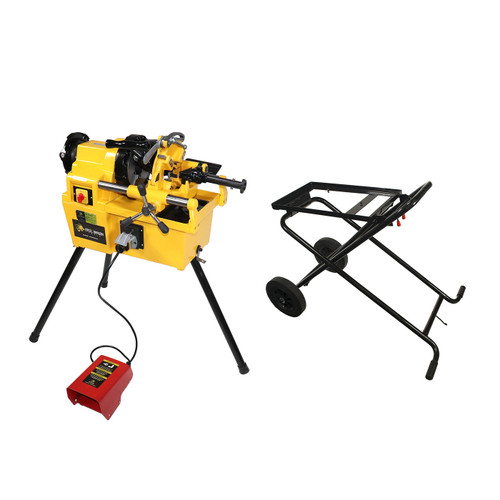

The Steel Dragon Tools® 7090 is a portable and compact, high-performance pipe threading machine that will thread, cut, and ream up to 2-inch pipe. This machine comes with a Steel Dragon Tools® 811A quick-opening die head and a through-head oiling system. The included high-speed steel dies will fit RIDGID® die heads
The Steel Dragon Tools® 7090 features a 1000-watt induction motor and a heavy-duty, removable foot pedal. This package includes a folding steel cart with wheels, allowing for easy transport around the shop or job site.
Features:
- Pipe Capacity: 1/2 in. to 2 in. NPT
- Automatic oiling system produces high-quality threads. Oil comes through the die head with a gear driven pump and automatically recirculated through the system.
- Includes Steel Dragon Tools® 811A Die Head that works with RIDGID® Dies.
- Dies are made of steel with Rockwell Hardness of 58-62 HRC for long operating life.
Package Includes:
- Steel Dragon Tools® 7090 Pro Pipe Threading Machine
- Steel Dragon Tools® 811A 1/2 in. to 2 in. universal die head.
- Steel Dragon Tools® 811A Universal Die Head works with compatible RIDGID® machines and dies.
- One (1) set of Steel Dragon Tools® 47765 1/2 in. to 3/4 in. universal high-speed steel dies.
- One (1) set of Steel Dragon Tools® 47770 1 in. to 2 in. high speed steel dies.
- Heavy-duty removable foot pedal.
- Industrial-strength pipe cutter.
- Portable cart with 10-inch wheels.
- Wrenches and oil can.
- Threading oil is not included.
Specifications:
- Motor: Induction, 1000 W, 110 V, 60 Hz, 25 RPM, Reversible
- Maximum Chuck Capacity: 2-1/2 in.
- Reamer: Pentangular 5-Blade Conical
- Pipe Cutter Capacity: 1/4 in. to 2 in.
- Maximum amperage under load is 18.5 amps
- Overall Measurements: 24 in. x 24 in. x 18 in.
- Overall Weight: 190 lbs.
