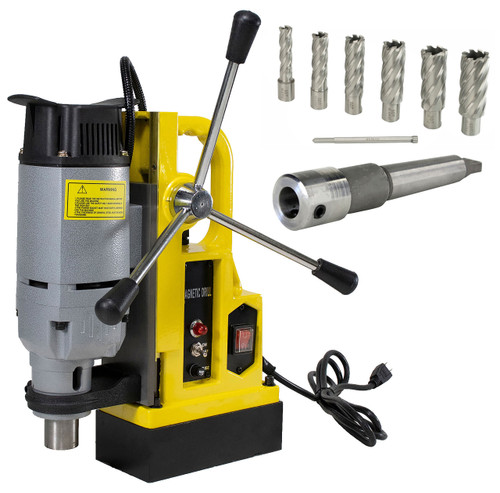

This package includes the Steel Dragon Tools® MD50 Magnetic DrillPress and the Steel Dragon Tools 7-piece, 2-inch cut depth, high-speed steel annular cutter kit.
The Steel Dragon Tools® MD50 Magnetic Drill Press will accept up to 2-inch, high-speed steel annular cutters with a maximum boring diameter of 2 in. (50 mm). This magnetic drill press will attach directly to the metal drilling surface with a powerful electromagnet. The electromagnet has 2,900 lbs. of max force and ensures the machine will not move during the drilling process.
A secured magnetic drill press provides more leverage than a hand drill, allowing the operator to cut even, consistent holes. The magnet also allows the drill to operate upside down.
A full line of 1-inch and 2-inch HSS annular cutters by Steel Dragon Tools are available.
MD50 Features:
- Suitable for drilling on any metal surface.
- Rack and pinion gear system for exact drilling depth.
- One (1) year warranty against manufacturer defect.
MD50 Specifications:
- Motor: High-Speed Series, Induction, 1850 W, 110 V, 60 Hz, 15 A
- Max Magnetic Force: 2,900 lbs. (13,000 N). Thinner metal will result in less force.
- Maximum Boring Diameter: 2 in. (50 mm)
- Maximum Boring Depth: 8-1/2 in.
- Tool Holder: 3/4-inch Weldon Shank
- Spindle Speed: 300 RPM
- Overall Weight: 52 lbs.
Annular Cutter Features:
- SDT annular cutters will drill large holes up to ten times faster than regular drills bits.
- Machine-finish hole with no reaming needed when using lubricant.
- Make overlapping holes, slotting holes, and edge cuts.
- Bit size is etched on each cutter.
- Pilot pin helps locate the center of hole location.
- Pilot pin helps eject slug after drilling is complete.
- During the drilling process, the pilot pin will retract into the cutter allowing lubrication to reduce heat gain in the slug.
Annular Cutter Specifications:
- Kit includes six (6) high-speed steel annular cutters and one (1) pilot pin.
- Bit sizes included: 9/16 in., 11/16 in., 13/16 in., 15/16 in., 1 in., and 1-1/16 in.
- Cutting Depth: 2 in.
- 3/4 in. Weldon Shank
- Pilot Pin: 1/4 in. x 4 in. (6.34 mm x 103 mm)
