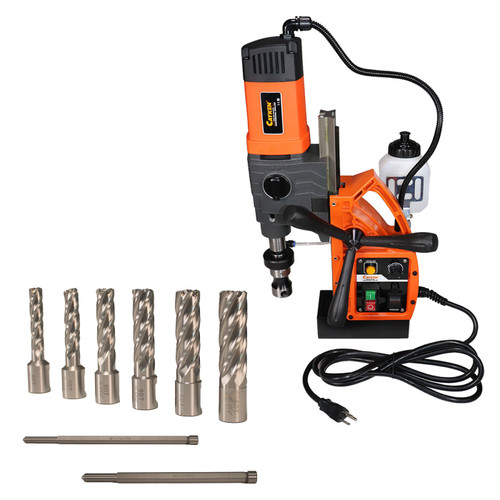

This package includes the Cayken KCY-48-2WDO Electromagnetic Drill Press and the Steel Dragon Tools® 13-piece, 1-inch cut depth, high-speed steel annular cutter kit.
The Cayken KCY-48-2WDO Electromagnetic Drill Press has 3,260 lbs. of maximum magnetic force. A secured magnetic drill press provides more leverage than a hand drill, allowing the operator to cut even, consistent holes. The magnet also allows the drill to operate upside down.
The Cayken KCY-48-2WDO, with a 1,700-watt, 2.27 HP, variable-speed motor, can handle almost any metal drilling job. The KCY-48-2WDO has a maximum boring diameter of 1.8-inches (48 mm) and includes a MT2 to 3/4-inch Weldon Shank Chuck adaptor. The Cayken KCY-48-2WDO is CE/ROHS/ISO90001 Certified.
KCY-48-2WDO Features:
- For use with core drilling, twist drilling, or tapping function.
- Durable oil-immersed gear.
- Forward and reverse functions.
- Adjustable positioning.
- Electronic overload protection to protect the motor against overheating.
- Soft-start motor with electronic current limiter.
- Die-cast alloy frame.
- Includes carrying case, lubricant reservoir bottle, and nylon safety strap.
- CE/ ROHS/ ISO90001 Certified
KCY-48-2WDO Specifications:
- Motor: Variable-Speed, 1,700 W, 110 V, 50/60 Hz, 2.27 HP
- Maximum Magnetic Force: 3,260 lbs. (14,500 N). Thinner metal will result in less force.
- Maximum Boring Diameter: 1.8 in. (48 mm)
- Maximum Twist Drilling Diameter: 0.85 in. (22 mm)
- Maximum Tapping Diameter: M18
- Maximum Boring Depth: 6-3/4 in.
- Spindle: MT2 to 3/4-inch Weldon Shank
- Net Weight: 30 lbs.
Annular Cutter Features:
- Steel Dragon Tools® annular cutters will drill large holes up to ten times faster than regular drills bits.
- Machine-finish hole with no reaming needed when using lubricant.
- Make overlapping holes, slotting holes, and edge cuts.
- Bit size is etched on each cutter.
- Pilot pin helps locate center of hole location.
- Pilot pin helps eject slug after drilling is complete.
- During the drilling process, the pilot pin will retract into the cutter allowing lubrication to reduce heat gain in the slug.
Annular Cutter Specifications:
- Kit includes 11 high speed steel annular cutters and two (2) pilot pins.
- Bit sizes included: 7/16 in., 1/2 in., 9/16 in., 5/8 in., 11/16 in., 3/4 in., 13/16 in., 7/8 in., 15/16 in., 1 in., 1-1/16 in.
- Cutting Depth: 1 in.
- 3/4 in. Weldon Shank
