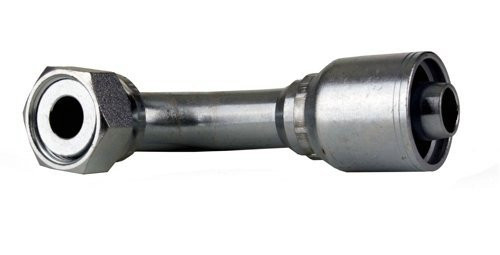

FFX90-06-08 - 3/8" Hose x 1/2" ORFS Female 90° Swivel Hydraulic Hose Fitting

MSRP: $28.00
$21.99
(You save $6.01 )
Free Shipping
(No reviews yet) Write a Review
SKU:
ETD-FFX90-06-08
UPC:
745528409934
Condition:
New
Weight:
0.31 LBS

Specifications:

  • Hose Inner Diameter: 3/8"
  • Thread: 13/16 - 16 ORFS
  • With a 90° Swivel
  • Part Number: FFX90-06-08

O-Ring Face Seal (ORFS): The O-ring Face Seal uses an O-ring (SAE J515) in a groove on the male face side. This is mated to flat face without an O-ring on the female swivel side, forming a seal without metal deformation much the same as an SAE four bolt split flange connection without the bolts. The O-ring face seal connection has been tested to SAE J343 tests and procedures and meets or exceeds SAE J1453 specifications. This connector has proven its superiority in leak resistance, ease of installation, high operating pressure, increased torque tolerance and reusability with regard to its ability to be connected and disconnected frequently.

Use with the following hoses:

  • SAE 100R2 AT Hydraulic Hose (R2)
  • SAE 100R16 Hydraulic Hose (R16)
  • SAE 100R17 Hydraulic Hose (R17)
  • Tough Cover Hydraulic Hose (KT)
  • Hydraulic Jack Hose (HJK)
  • SAE 100R1 AT Hydraulic Hose (R1)
  • SAE 100R3 General Purpose Hose (R3)
