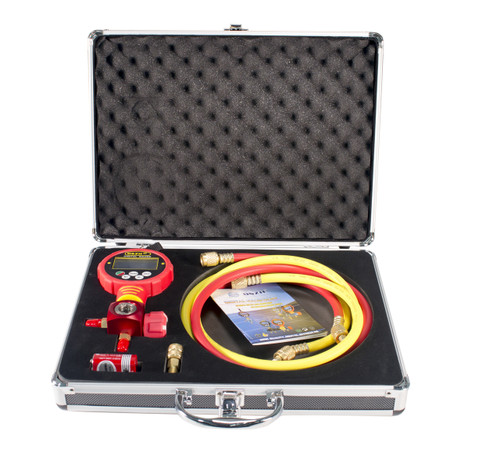

The IWISS® WK-6881H is a digital manifold gauge set with digital pressure vacuum gauge and two (2) 4-foot charging hoses. For use when servicing or installing refrigeration systems. The IWISS® WK-6881H has a built-in database of 82 refrigerant pressures and temperature relationships in accordance with NIST standards. This set features a pressure and vacuum gauge shift function with real-time vacuum pressure and percent indicator. Kit includes digital gauge, two (2) 4-foot charging hoses, and one connection valve. Digital gauge has battery life of 30 continuous hours. Gauge requires one (1) 9V battery. Battery is included.
Specifications:
- Includes digital gauge, two (2) 4-foot charging hoses, and one (1) connection valve.
- Features 82 built-in refrigerant pressures and temperature relationships in accordance with NIST standards.
- Battery Life: 30 Continuous Hours.
- Low power indicator.
- Measurement Units: kPa, bar, PSI, Torr, kgf/cm2, inHg, mmHg.
- Temperature Units: °F, °C
- Measurements Of Vacuum: -101 kPa to 0 kPa
- Measurement Of Pressure: 0 kPa to 6 mPa
- Refrigerant: -101 kPa to 4 kPa
- Resolution: 1 kPa
- Accuracy: +/- 0.5%
- Overload: 100 bar, 10 mPa
- Operating Temperature Range: -4° F to 140° F (-20° C to 60° C)
