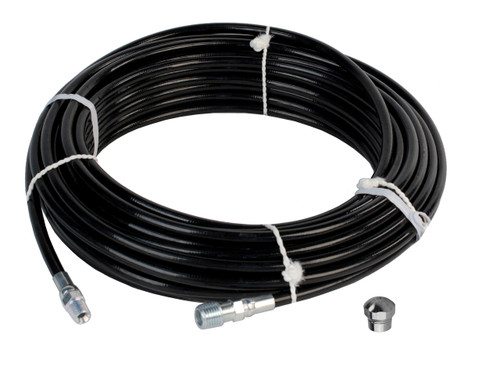

Schieffer 4800 PSI 1/8" x 50' Thermoplastic Sewer Jetter Hose MPT 1/4 1/8 Solid

MSRP: $83.00
$63.99
(You save $19.01 )
Free Shipping
(No reviews yet) Write a Review
SKU:
SCH-SJ-02-050
UPC:
819891024893
Condition:
New
Weight:
2.00 LBS

Schieffer Thermoplastic sewer jetter hose made in the USA for all types of medium and high-pressure jetting applications. Schieffer Sewer Jetter hose uses a reinforcement construction composed of one extra strong layer of textile braid. Schieffer uses a single pass with a twenty-four carrier braider vs two passes with a sixteen carrier braider like most of the competition. Covering the hose in a single pass keeps the layers of braiding closer and tighter together creating a stronger hose than other competitor's hoses using a two-pass process, that is not as tightly wound.

Hose Construction

  • Inner Tube: Thermoplastic polyester tube
  • Reinforcement: One layer of 1/8" high tenacity polyester textile braid that is chemically bonded
  • Cover: Black thermoplastic polyurethane that is oil, weather, ozone, and abrasion resistant
  • Temperature Range: -40°F / +160°F

Hose Specifications:

  • Hose Length: 50'
  • Hose Size: DN 03 - Dash -02
  • Hose Connections: 1/8" MPT (solid) + 1/4" MPT Bushing (swivel)
  • Hose I.D: .16" (4mm)
  • Hose O.D: .37" (9.5mm)
  • Working Pressure: 4800 PSI - 331 Bar
  • Proof Pressure: 6000 PSI - 414 Bar
  • Burst Pressure: 12000 PSI - 828 Bar
  • Bend Radius (MIN): 1" (25mm)

Schieffer Quality Guarantee:

Schieffer is an ISO 9001:2008 certified in 2012, The company continues to implement and embrace the most modern practices of quality and continuous process improvement. Each batch is quality tested to meet or exceed expectations because of the following:

  • Qualify all fittings
  • Burst test hoses
  • Leak test assemblies to confirm proper crimp
  • Pin test each crimp to confirm proper internal crimp
  • Full-Time Quality Control Dept that contributes to our overall performance

WARNING! This product can expose you to chemicals including lead, cadmium, mercury, and chromium, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

bend_radius
1.00 in.
color
Black
cover
Thermoplastic polyurethane that is oil, weather, ozone, and abrasion resistant
hose_connections
1/8" MPT (solid) + 1/4" MPT Bushing
hose_length
50'
inner_diameter
.16 in.
inner_tube
Thermoplastic polyester tube
max_temp
160° F
min_temp
-40° F
outer_diameter
.37 in.
Overall Depth:
4
Overall Height:
10
Overall Width:
10
psi_burst
12000
reinforcement
One layer 1/8" high tenacity polyester textile braid that is chemically bonded
size
1/8 in.
psi
4800
hose_connections
1/8" MPT (solid) + 1/4" MPT Bushing
hose_length
50'
reinforcement
One layer 1/8" high tenacity polyester textile braid that is chemically bonded
