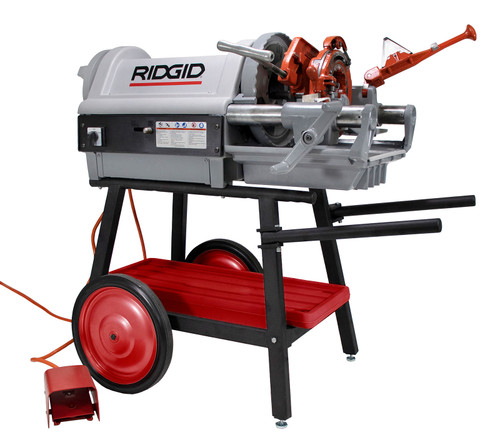

Reconditioned RIDGID® 1224 Pipe Threader 26092 with 744 Reamer & 764 Cutter

MSRP: $13,000.00
$7,599.99
(You save $5,400.01 )
Free Shipping
(No reviews yet) Write a Review
SKU:
RD-RF-1224
UPC:
843824114993
Condition:
Refurbished
Weight:
500.00 LBS

The Steel Dragon Tools® (Reconditioned) RIDGID® 1224 Power Pipe Threader has been cleaned, repaired, and prepared for professional use. Each Steel Dragon Tools® (Reconditioned) RIDGID® machine is disassembled, cleaned, inspected, painted, reassembled, and tested. All Steel Dragon Tools® (Reconditioned) RIDGID® machines run like new and feature a one (1) year warranty against manufacturer defects.

Package Includes:

  • Steel Dragon Tools® (Reconditioned) RIDGID® Model No.1224 Power Pipe Threader.
  • Steel Dragon Tools® (Reconditioned) RIDGID® 744 Pipe Reamer.
  • Steel Dragon Tools® (Reconditioned) RIDGID® 764 Pipe Cutter.

Steel Dragon Tools® (Reconditioned) RIDGID® 1224 Power Pipe Threader Features:

  • Thread 1/4-inch to 2-inch pipe at 36 RPM.
  • Thread 2-1/2-inch to 4-inch pipe at 12 RPM.
  • Threads black, galvanized, plastic-coated, steel, and stainless-steel pipe.
  • Will also thread IMC, heavy wall conduit.
  • Will also thread rod up to 30 Rockwell C.
  • Special capacitor-start / capacitor-run motor allows for threading despite voltage drop.
  • For use with 1/4-inch to 2-inch universal die head.
  • For use with 2-1/2-inch to 4-inch receding die head.
  • Will cut tapered or straight NPT/NPSM or BSPT/BSPP threads.

Specifications:

  • Pipe Capacity: 1/4 in. to 4 in. (6 mm to 100 mm)
  • Bolt Capacity: 1/4 in. to 2 in. (6 mm to 50 mm)
  • Motor: 1-1/2 HP, 60 Hz or 50 Hz, Induction-Type, Single-Phase
  • Motor Control: Reverse/Off/Forward controlled by heavy-duty, rotary type and integral foot switch.
  • Spindle Speed: 36 RPM or 12 RPM
  • Gear Box: Two-speed gearbox 3:1 ratio.
  • Chuck: Hammer-type with replaceable rocker-action jaw inserts.
  • Rear Centering Device: Cam-action
  • Oiling Pump: Self-priming, gerotor-type, with automatic reversing and constant flow.

WARNING! This product can expose you to chemicals including aluminum, copper, lead and di_2_ethylhexyl_phthalate_dehp, which are known to the state of California to cause cancer and birth defects or other reproductive harm, respiratory irritation, neurotoxicity, and/or immunotoxicity. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.

bolt_capacity
1/4 in. - 2 in.
cart
Yes
die_head
Universal Self Opening
fits_ridgid_dies
Yes
foot_pedal
Yes
hertz
50/60
horsepower
1 1/2 hp
max_pipe_capacity
4
motor_type
Induction
npsm
Yes*
npt
Yes
Overall Depth:
48
Overall Height:
48
Overall Width:
48
pipe_capacity
1/4 in. - 4 in.
reverse
Yes
rpm
36/12
self_oiling_system
Yes
video_link_url
FY4zFlPmBsE
voltage
115
wattage
1125 watts
