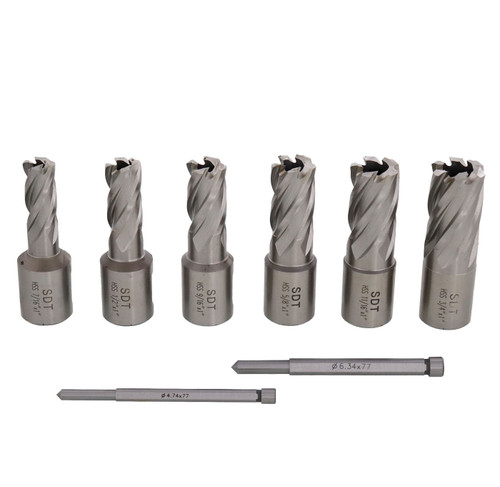

The Steel Dragon Tools® 7-piece high-speed steel annular cutter kit includes six (6) annular bits and two (2) pilot pins. These bits will quickly and safely cut holes in steel. The bits have a 2-inch cutting depth with a 3/4 in. Weldon shank. Bit sizes included: 7/16 in., 1/2 in., 9/16 in., 5/8 in., 11/16 in., and 3/4 in.
Features:
- Steel Dragon Tools® annular cutters will drill large holes up to ten times faster than regular drills bits.
- Machine-finish hole with no reaming needed when using lubricant.
- Make overlapping holes, slotting holes, and edge cuts.
- Bit size is etched on each cutter.
- Pilot pin helps locate the center of hole location.
- Pilot pin helps eject slug after drilling is complete.
- During the drilling process, the pilot pin will retract into the cutter allowing lubrication to reduce heat gain in the slug.
Specifications:
- Kit includes six (6) high-speed steel annular cutters and two (2) pilot pin.
- Bit sizes included: 7/16 in., 1/2 in., 9/16 in., 5/8 in., 11/16 in., and 3/4 in.
- Cutting Depth: 2 in.
- 3/4 in. Weldon Shank
- Pilot Pin: 1/4 in. x 4 in. (6.34 mm x 103 mm)
- Pilot Pin: 3/16 in. x 4 in. (4.74 mm x 102 mm)
- Includes carrying case.
