Steel Dragon Tools® MD40 Magnetic Drill Press with 13pc 1in. HSS Cutter Kit

MSRP: $833.00
$529.99
(You save $303.01 )
Free Shipping
(No reviews yet) Write a Review
SKU:
SDT-MD40-AC113
UPC:
817482026684
Condition:
New
Weight:
44.00 LBS

Please call us for availability! 866-837-6524

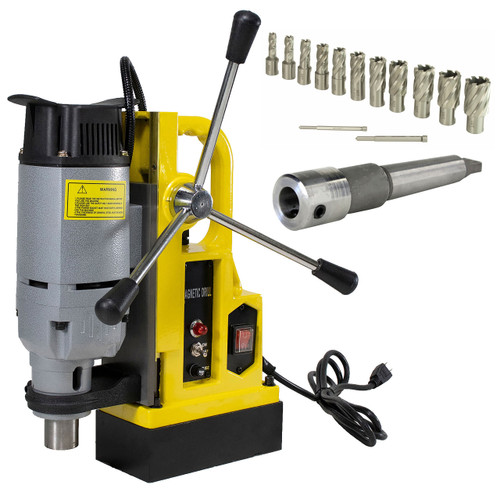

This package includes the Steel Dragon Tools MD40 Magnetic Drill Press and the Steel Dragon Tools 13-piece, 1-inch cut depth high-speed steel annular cutter kit.

The Steel Dragon Tools MD40 Magnetic Drill Press will accept up to 2-inch, high-speed steel annular cutters with a maximum boring diameter of 1-1/2 in. (40 mm). This magnetic drill press will attach directly to the metal drilling surface with a powerful electromagnet. The electromagnet has 2,700 lbs. of max force and ensures the machine will not move during the drilling process.

A secured magnetic drill press provides more leverage than a hand drill, allowing the operator to cut even, consistent holes. The magnet also allows the drill to operate upside down.

A full line of 1-inch and 2-inch HSS annular cutters by Steel Dragon Tools are available.

MD40 Features:

  • Suitable for drilling on any metal surface.
  • Rack and pinion gear system for exact drilling depth.
  • One (1) year warranty against manufacturer defect.

MD40 Specifications:

  • Motor: High-Speed Series, Induction, 1,100 W, 110 V, 60 Hz, 15 A
  • Max Magnetic Force: 2,700 lbs. (12,000 N). Thinner metal will result in less force.
  • Maximum Boring Diameter: 1-1/2 in. (40 mm)
  • Maximum Boring Depth: 7-1/2 in.
  • Tool Holder: 3/4-inch Weldon Shank
  • Spindle Speed: 670 RPM
  • Overall Weight: 30 lbs.

Annular Cutter Features:

  • SDT annular cutters will drill large holes up to ten times faster than regular drills bits.
  • Machine-finish hole with no reaming needed when using lubricant.
  • Make overlapping holes, slotting holes, and edge cuts.
  • Bit size is etched on each cutter.
  • Pilot pin helps locate the center of hole location.
  • Pilot pin helps eject slug after drilling is complete.
  • During the drilling process, the pilot pin will retract into the cutter allowing lubrication to reduce heat gain in the slug.

Annular Cutter Specifications:

  • Kit includes 11 high-speed steel annular cutters and two (2) pilot pins.
  • Bit sizes included: 7/16 in., 1/2 in., 9/16 in., 5/8 in., 11/16 in., 3/4 in., 13/16 in., 7/8 in., 15/16 in., 1 in., 1-1/16 in.
  • Cutting Depth: 1 in.
  • 3/4 in. Weldon Shank
annular_cutters
13PC 7/16 in.-1 1/16 in. Cut Depth 1 in.
material
Metal
Overall Depth:
20
Overall Height:
11
Overall Width:
18
type
Electric Drills
